Defender Subterra 120

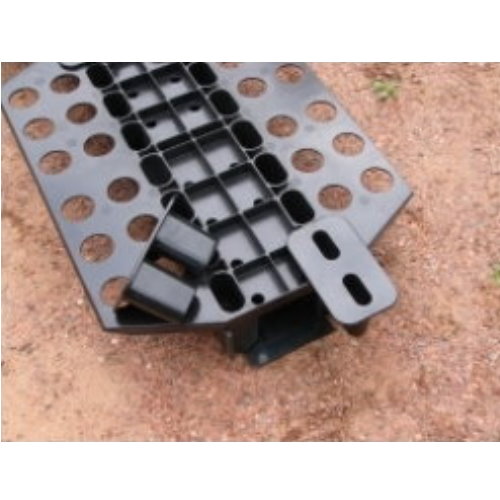

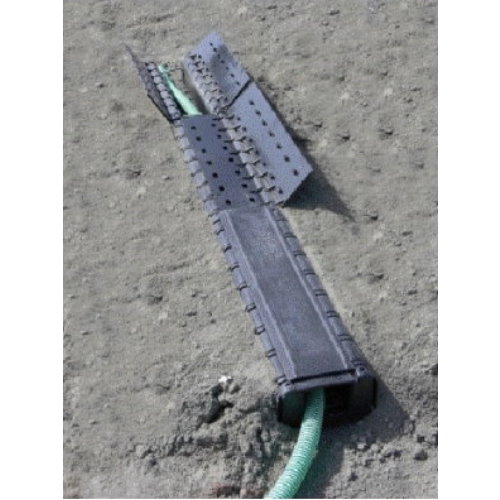

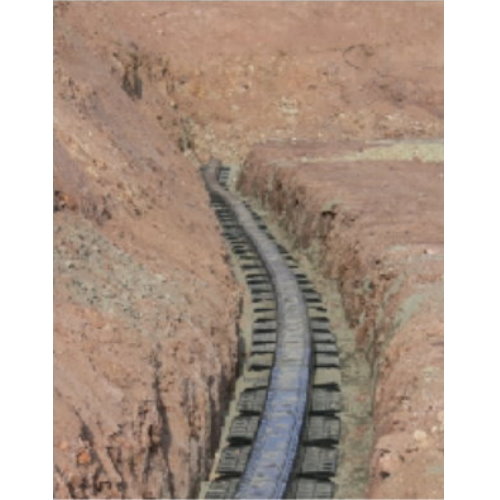

The DEFENDER Subterra 120 is a cable duct for professional applications at ground level or underground. Developed for the oil industry, this cable duct provides maximum security with quick access to the supply lines in the duct. The cable duct consists of a strong base plate made of highstrength polyamide, together with two side walls, each with an integrated lid made of polyurethane. While the high-strength base plate anchors the cable duct when in use and serves as an underlying connecting element, the rather flexible elements provide for a high load capacity. When closed, the two lids interlock with one another via special holders. This greatly increases the load-bearing capacity, permitting even heavy vehicles to drive over the cable duct with no restrictions, no matter whether it is used at ground level or underground. An interior cross section of 113 mm x 100 mm ensures that the duct capacity is sufficient for most applications.

• Lenght: 76 cm
• Width: 57 cm
• Height 15 cm
• Channels: 1 (11.3 x 10 cm)
• Flame Class: B2 (also available in B1 flame resistant)
• Load bearing: Approx 5 tons per typical tyre imprint (15 x 15 cm)
• The Cable-Crossover is oil, acid & petrol resistant
• Operating Range: -30°C up to +60° C

Pris på forespørsel.
